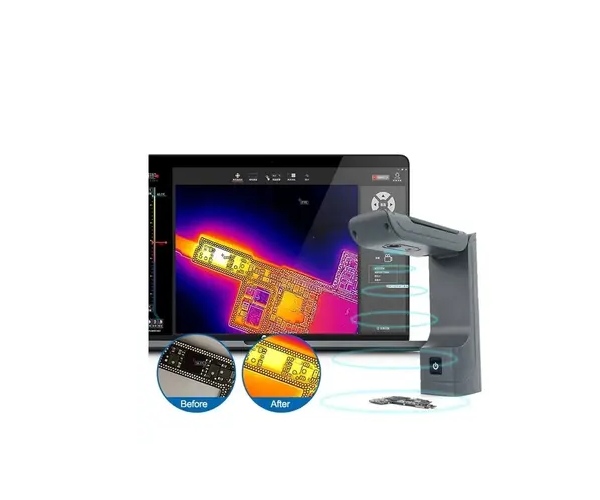

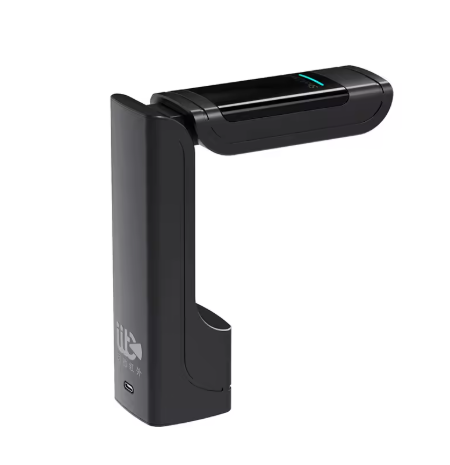

ShortCam II Infrared Thermal Imaging Camera PCB Diagnosis Instrument Detection Tools

Beschreibung

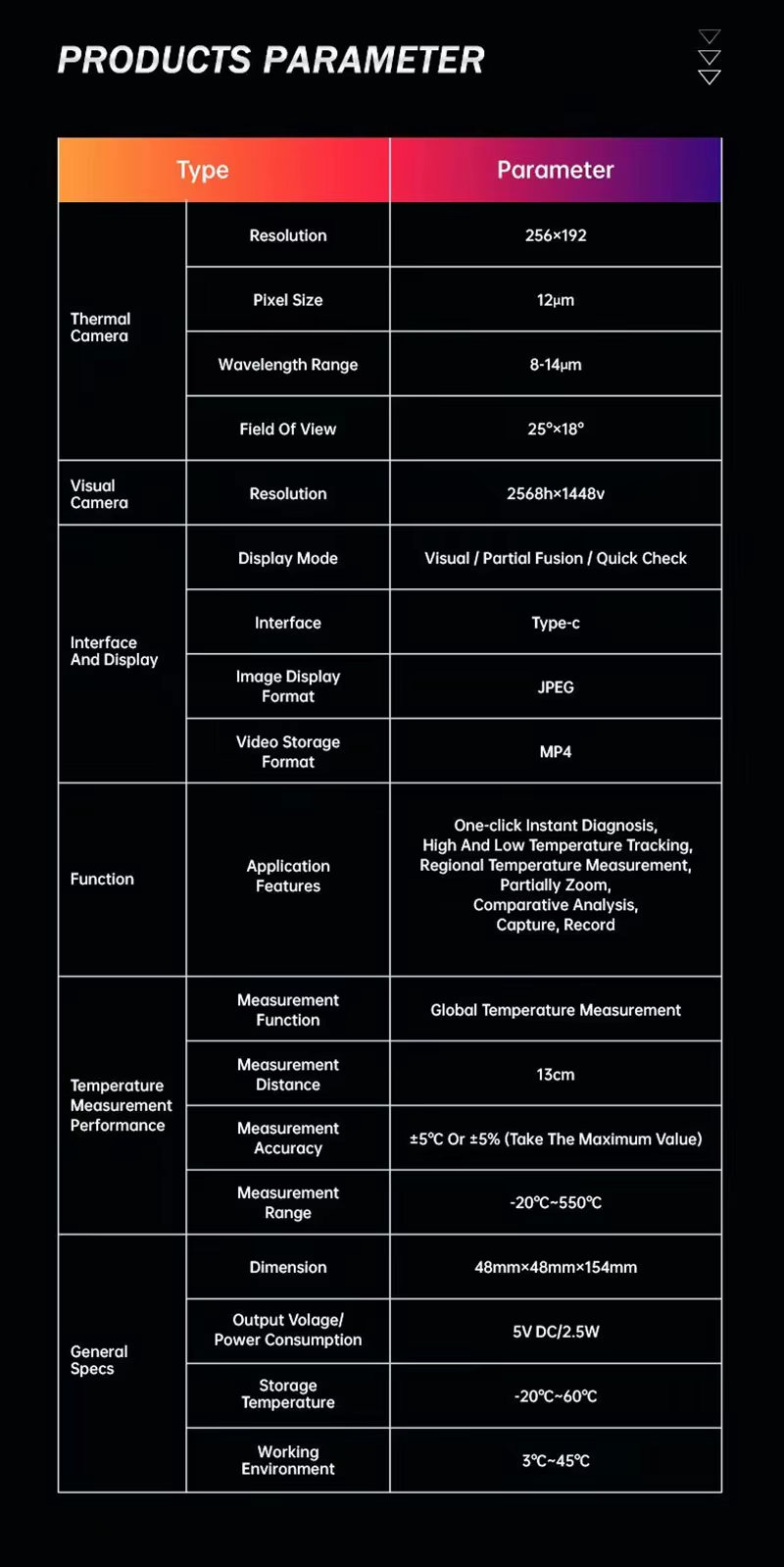

Specification:

• Resolution: 256*192

• Pixel size: 12μm

• Wavelength range: 8-14μm

• Field of view: 25°*18°

• Visible light resolution: 2568H*1448V

• Display Mode: Visible Light / Local Fusion / Quick Look

• Interface: Type-C

• Image display format: JPEG

• Video storage format: MP4

• Application functions: one-key quick check, high and low temperature tracking, frame temperature measurement, partial zoom, comparative analysis, snapshot, video

• Temperature measurement function: full temperature measurement

• Temperature measurement distance: 13cm

• Temperature measurement accuracy: ±5°C or ±5% (take the maximum value)

• Temperature measurement range: -20℃~550℃

• Product size: 48mm*48mm*154mm

• Output voltage/power consumption: 5V DC/2.5W

• Storage temperature: -20℃~60℃

• Working environment: 3℃~45℃

Package includes:

• 1 x Host

• 1 x Type-C power cord
